REDSCAN Indoor Laser Scan Detector

REDSCAN Indoor Laser Scan Detector

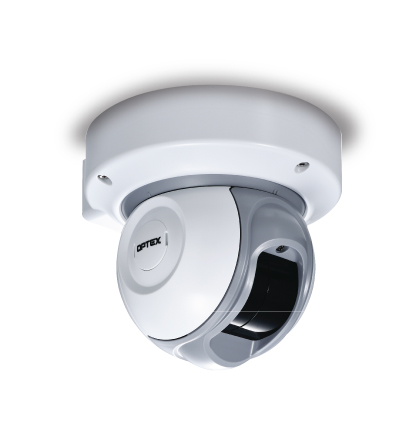

The REDSCAN mini RLS-2020i is an indoor IP/PoE laser scan detector providing 20 x 20m vertical or horizontal detection area.

  • 20m x20m (65ft x 65ft) 95 degree detection area
  • Vertical and Horizontal detection areas
  • Multi-angle Adjustment Shell Structure (M.A.S.S.)
  • Unique detection algorithm
  • Automatic area setting function (no need to measure the field of view)
  • Advanced area setting (1 pattern)
  • 4 adjustable detection areas on IP connection
  • Total 3 outputs can be assigned for analog connection
  • Compatible with Power over Ethernet
  • Paintable housing

Installation location Indoor
Detection method Infrared Laser Scan
Laser protection class Class 1
Power input 10.5 to 30 VDC, PoE (IEEE802.3 af/at compliant)
Current draw 500 mA max. (12 VDC), 250 mA max. (24 VDC), 6W max. (PoE)

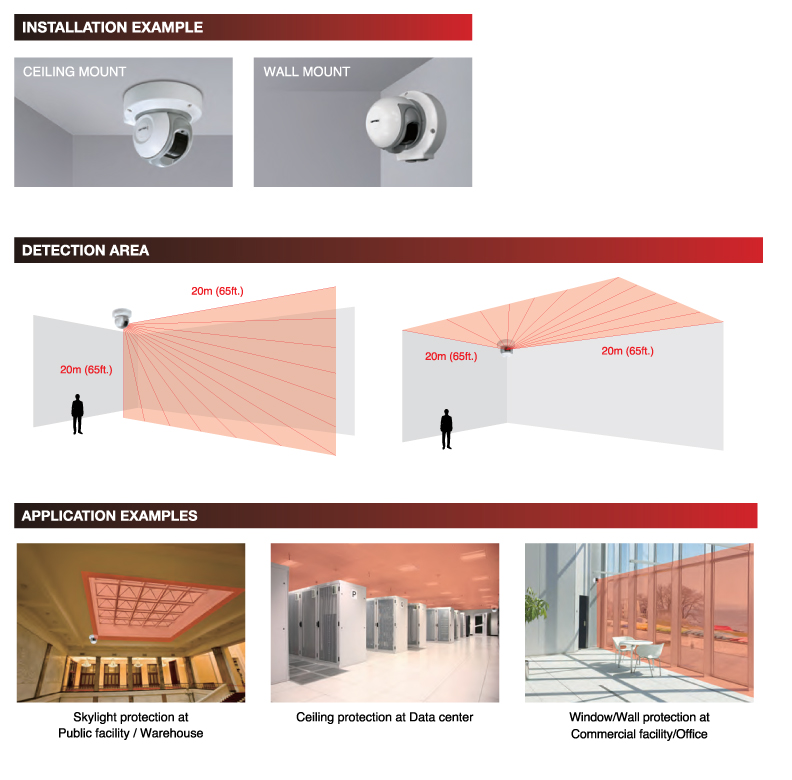

Mounting method Ceiling mount, Wall mount, Tripod mount, Pole mount (Option), Recess mount (Option)
Detection area 20 x 20 m, (approx. 65 x 65 ft.), 95 degrees
Detection range Radius 21m (approx. 68 ft.) at 10% reflectivity
Detection resolution/Response time 0.25 degrees / within 25 msec to 1 minute
Mounting height(Vertical mode) Indoor: 2 m (6.7 ft.) or higher
Communication port Ethernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation)
Protocol UDP, TCP/IP (Redwall Event Code), Http (Web setting), SNMP
Output 3 outputs, 28 VDC 0.2A max. N.O./N.C. Selectable
Alarm period Approx. 2 sec delay timer
Operating temperature -40 to 50 C degrees (-40 to 122 F degrees)

Specification(s) is subject to change without prior notice
